Installation Guide

This short article will guide you through the process of installing a sling board in your AK. Installation does not require any intervention or modification of the weapon. All you need is a screwdriver, a sling plate and a bit of free time.

Step 1

Make sure gun is unloaded and there no ammo in the chamber.

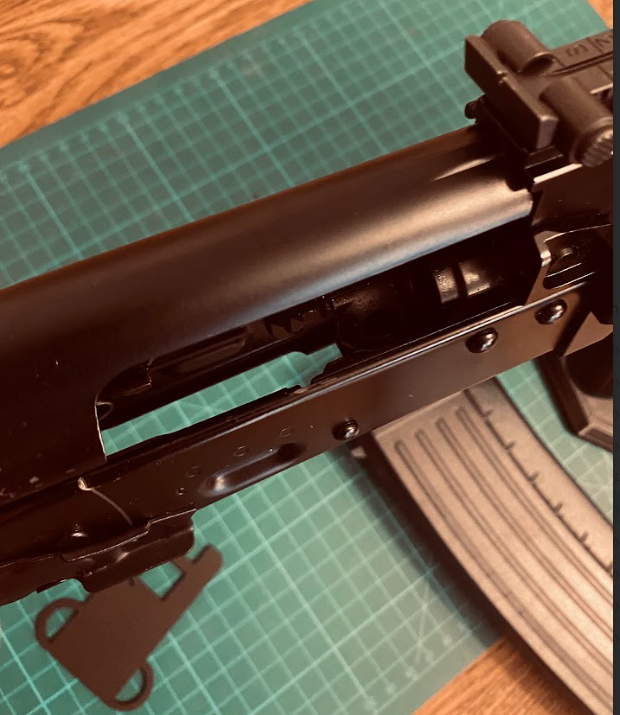

Step 2

Remove dust cover, bolt and recoil spring.

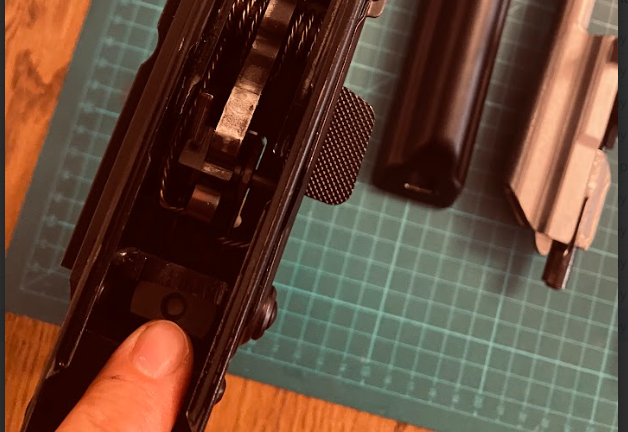

Step 3

Place your finger on metal block that holds the grip. This fill prevent it from falling out once we flip weapon uside down.

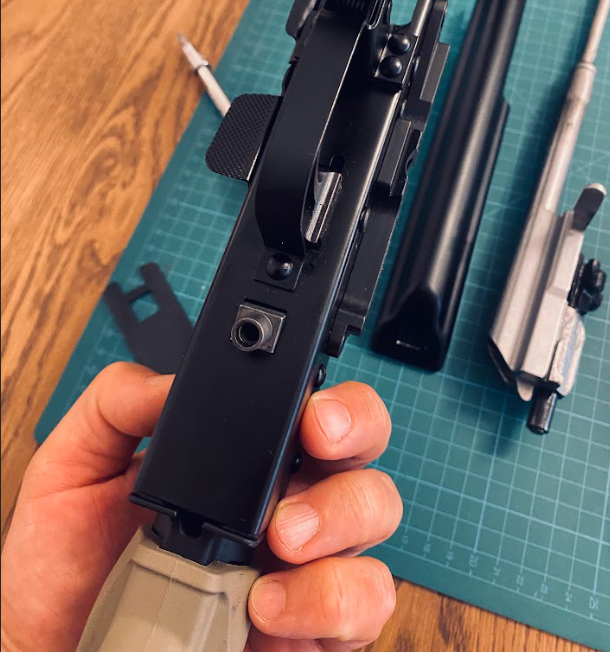

Step 4

With your finger on the block unscrew the grip

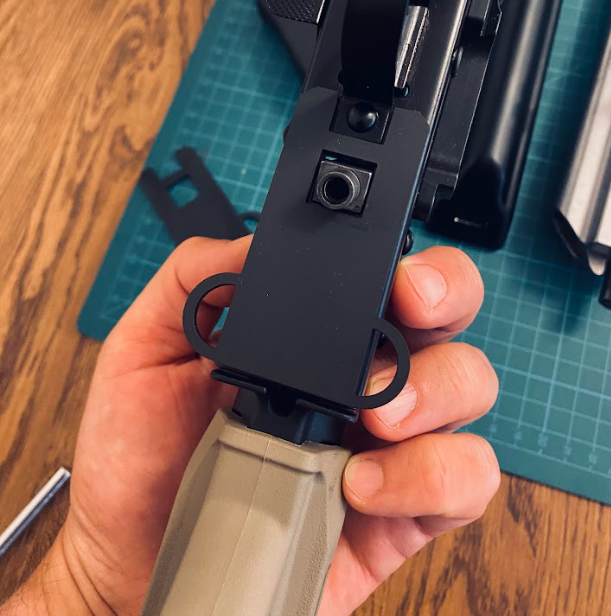

Step 5

Place your Sling Plate on the weapon.

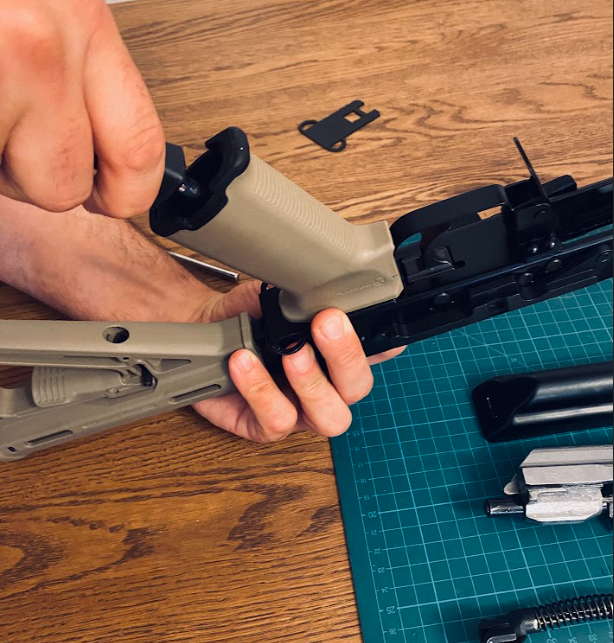

Step 6

Screw the handle back on.

Step 7

Assemble dust cover, bolt and recoil screw. Check if everything is align and tight.

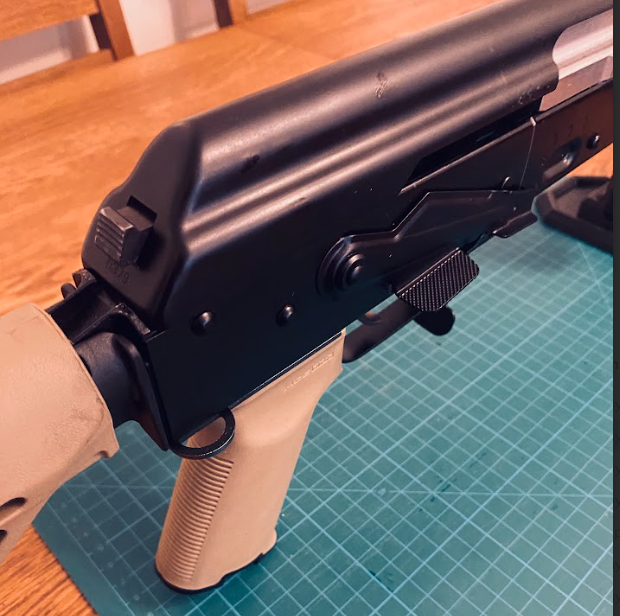

Step 8

Attach your sling and enjoy!
